Description
TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.

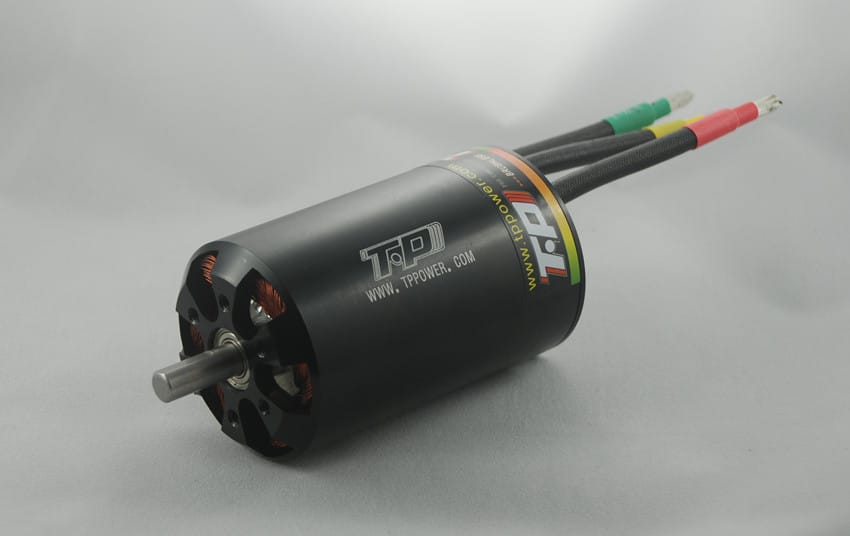

- Model Number: TP5680
- T: 6Y
- KV: 530
- Max Amps (A): 150
- Max Volt (V): 100
- Continuous (W): 7200
- Max Power (W): 15000
- Max RPM: 50K
- RM: 0.01057
- NO-Load Current: 2.6
- Shaft Diameter (mm): 8
- Diameter*Length (mm): 55*116
- Bolt Pattern (mm): M4*30mm
- Weight (g): 1060-1110
- Poles: 6P
